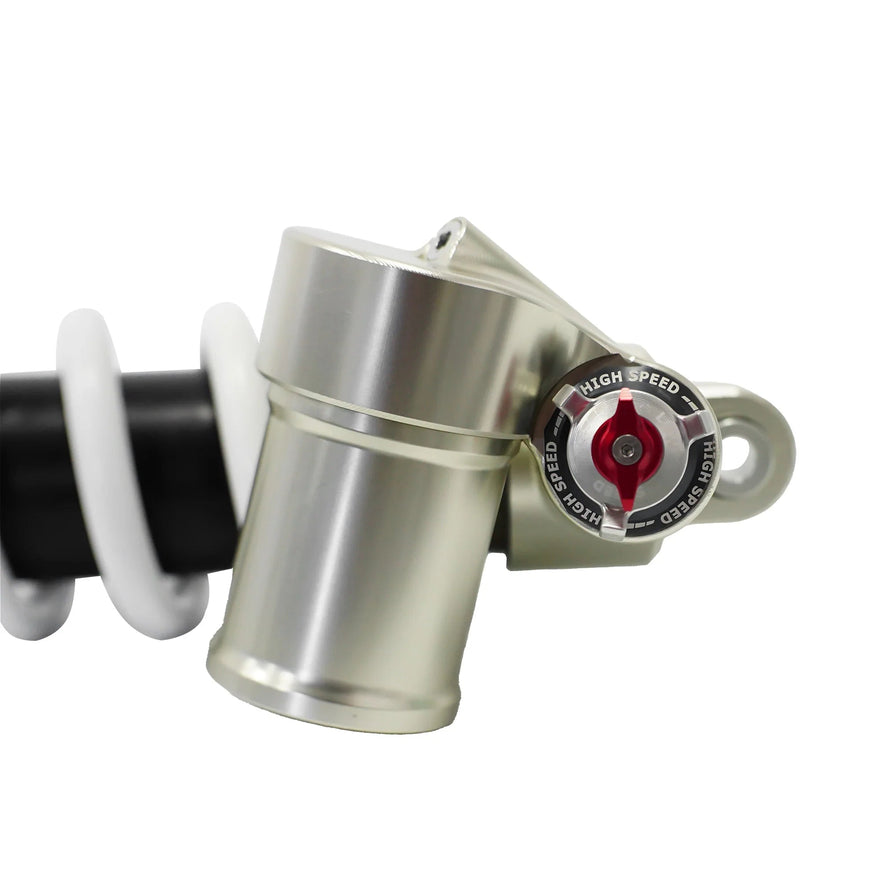

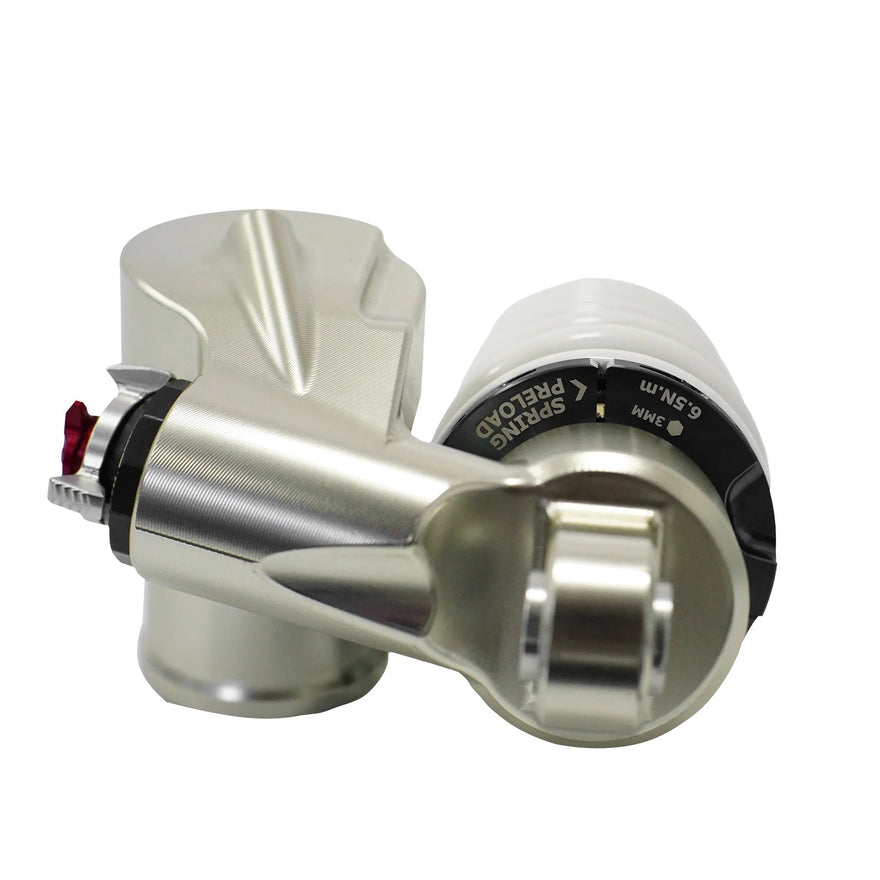

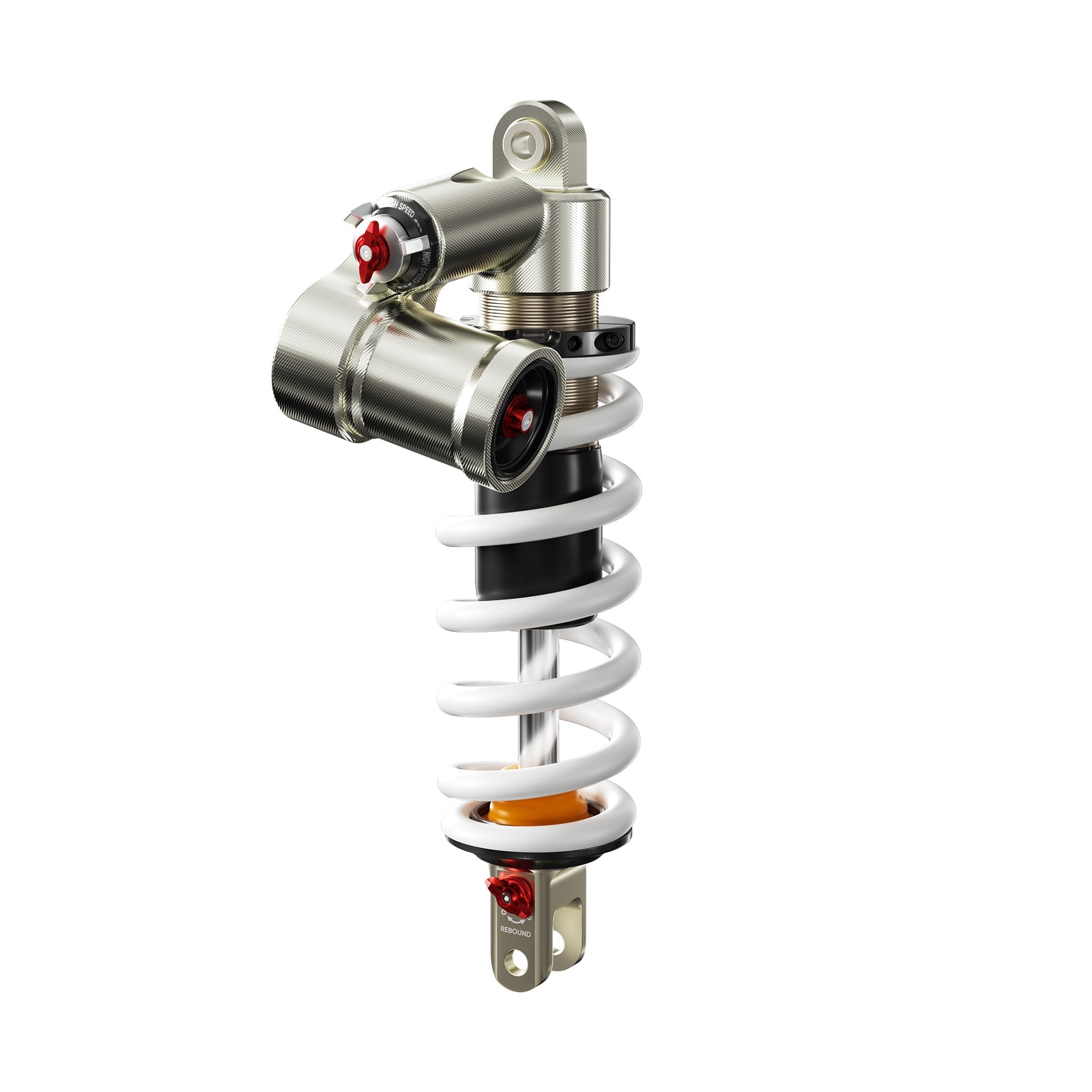

RfloXa RAF55RV

Upgrade the rear suspension performance of your Sur-Ron Ultra Bee with the RFloXa RAF55RV Reservoir Rear Shock. Designed specifically for the Ultra Bee, this high-performance shock features an external nitrogen reservoir and separated oil/gas damping for consistent suspension performance during aggressive riding.

With adjustable rebound and compression settings, the RAF55RV allows riders to fine-tune the shock for different riding styles and terrain, from street riding to jumping and enduro use.

Key Features

• External nitrogen reservoir
• Separated oil and gas damping system
• DLC-coated main tube for increased durability

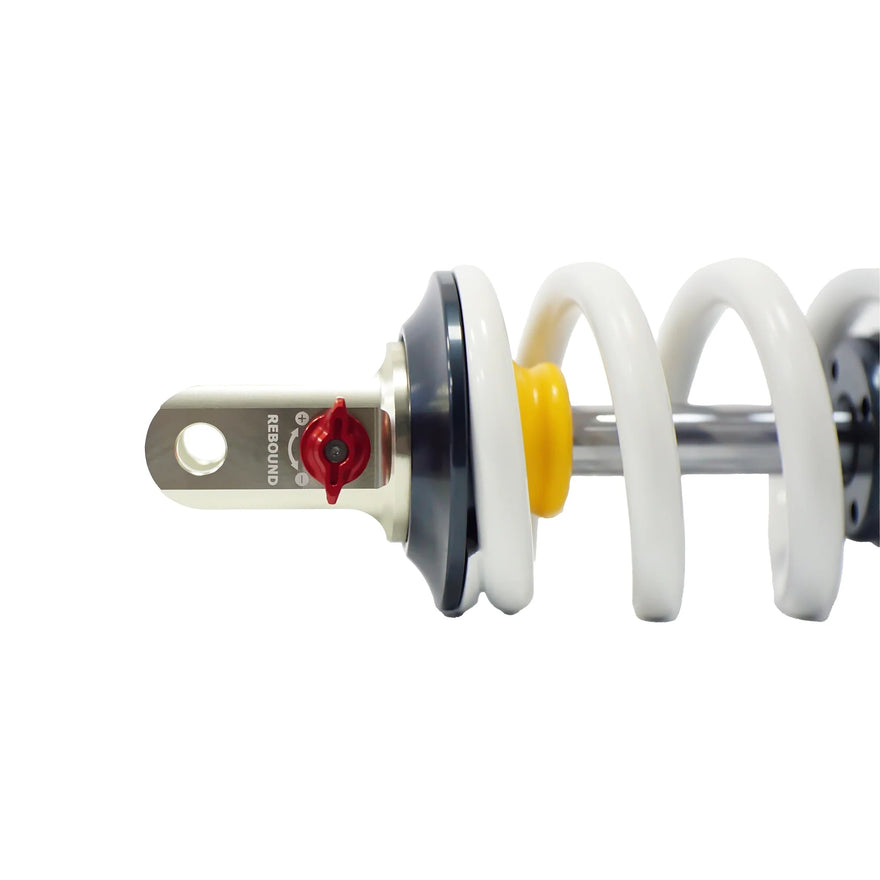

• Multi-stage rebound adjustment with 20 clicks
• High-speed compression adjustment with 3 turns
• Low-speed compression adjustment with 22 clicks
• CNC-machined AL6061-T6 top mount
• AL7075-T6 main body
• 42CrMo piston rod
• High-strength 55CrSi spring wire

Spring Rate Options

• 450 lb — Recommended for riders up to 85 kg
• 550 lb — Recommended for riders approximately 85–110 kg; softer setup for street riding
• 650 lb — Recommended for riders approximately 90–130 kg; firmer setup for jumping and enduro riding

Specifications

• Center Distance: 320mm
• Travel: 85mm
• Main Tube Diameter: 16mm
• Main Piston Diameter: 40mm
• Reservoir: External nitrogen reservoir
• Damping: Oil/gas separated damping
• Rebound: 20-click multi-stage adjustment
• High-Speed Compression: 3-turn adjustment
• Low-Speed Compression: 22-click adjustment

Fitment

• Sur-Ron Ultra Bee

Important Notes

• Select the appropriate spring rate based on rider weight and riding style.
• Spring rates are general recommendations and may vary depending on riding preferences, gear, and terrain.
• Some spring rate options may be available as pre-order depending on stock availability and may require additional processing time before shipment.
