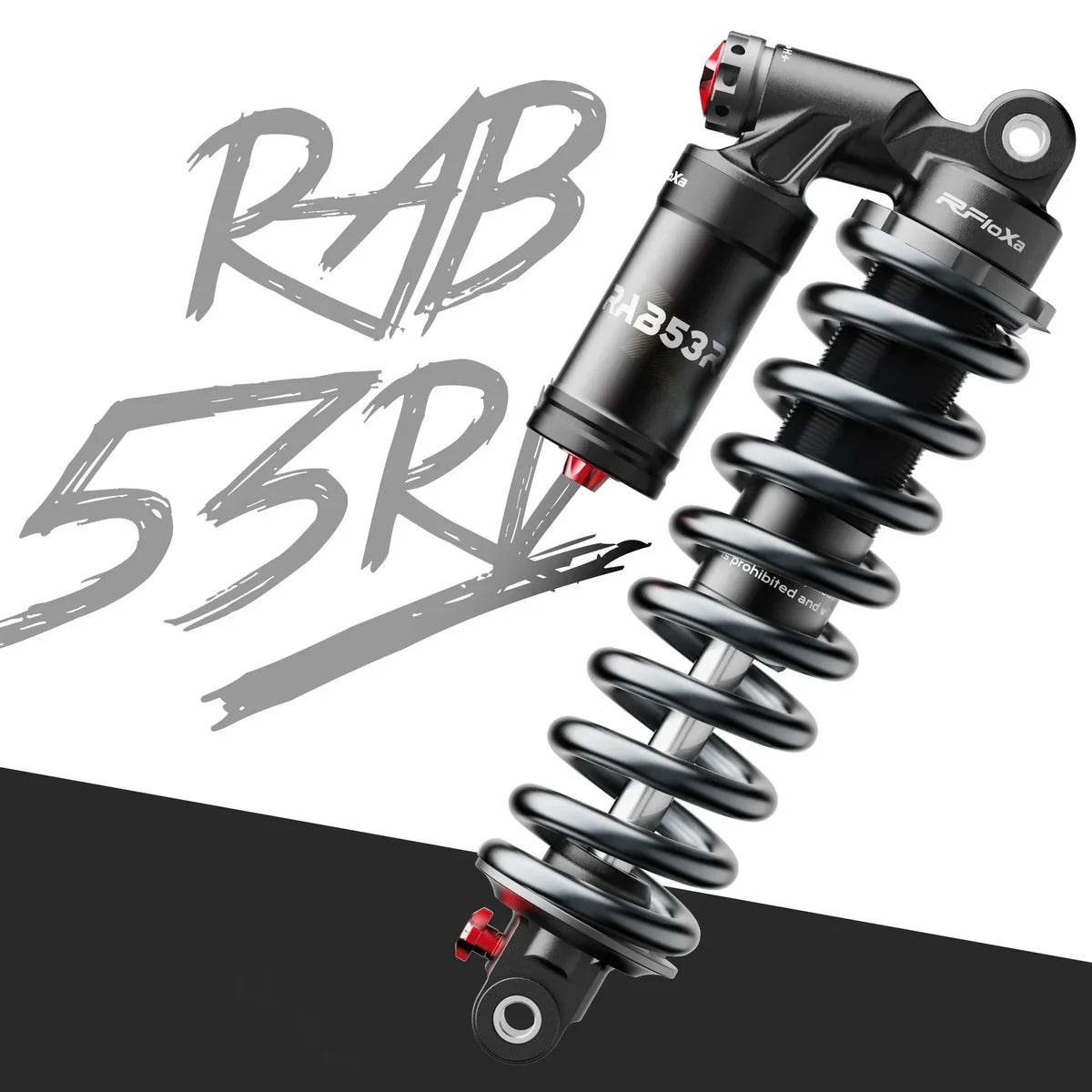

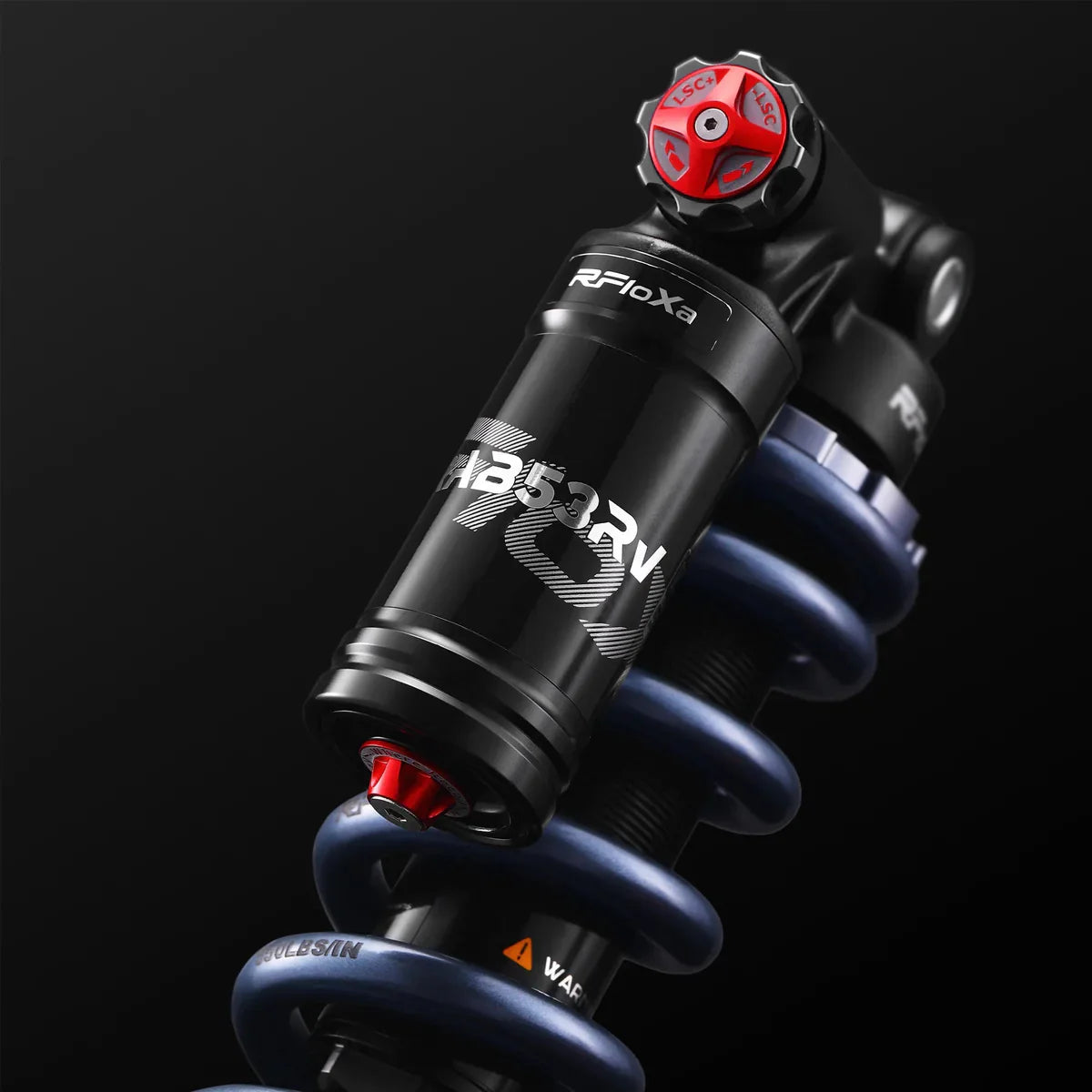

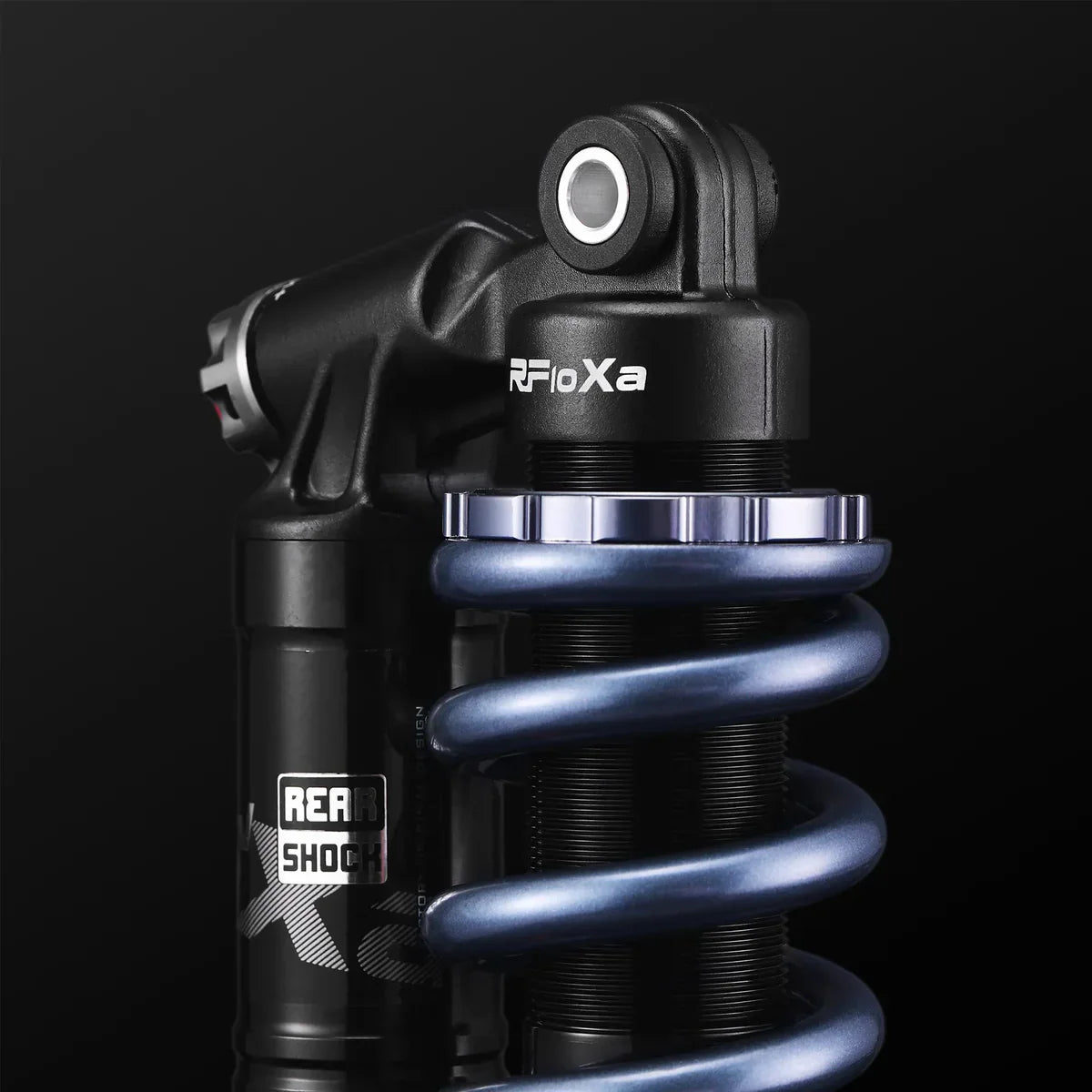

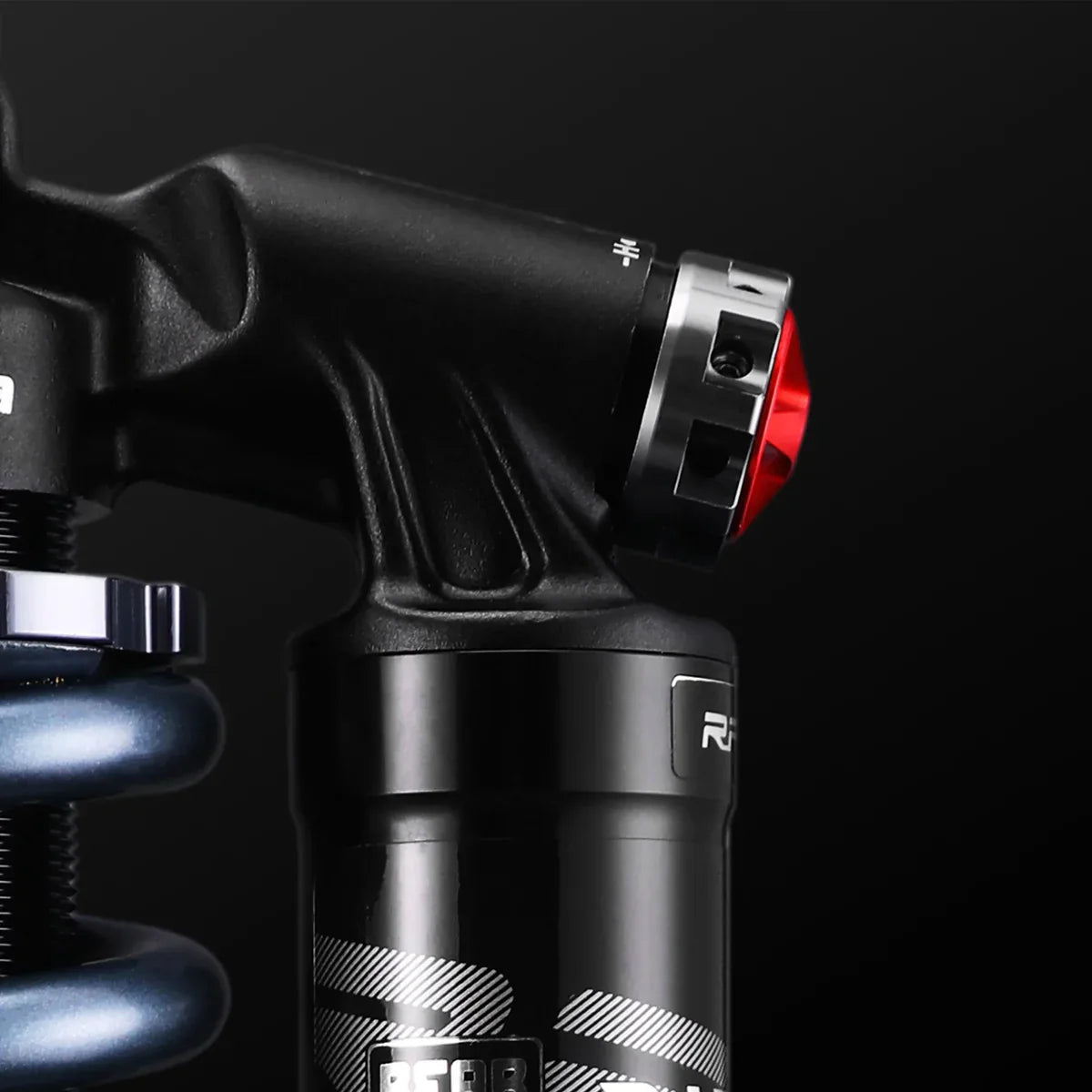

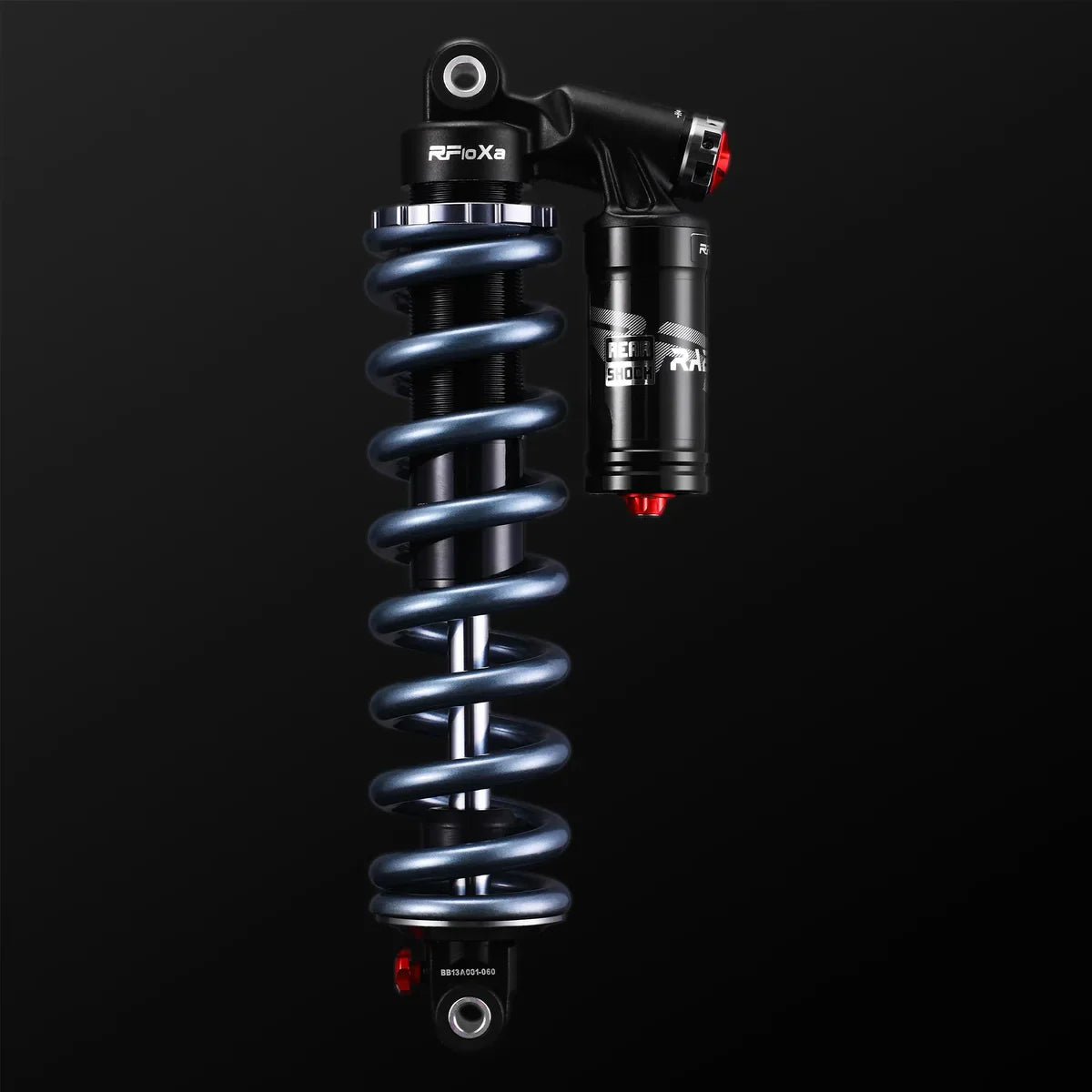

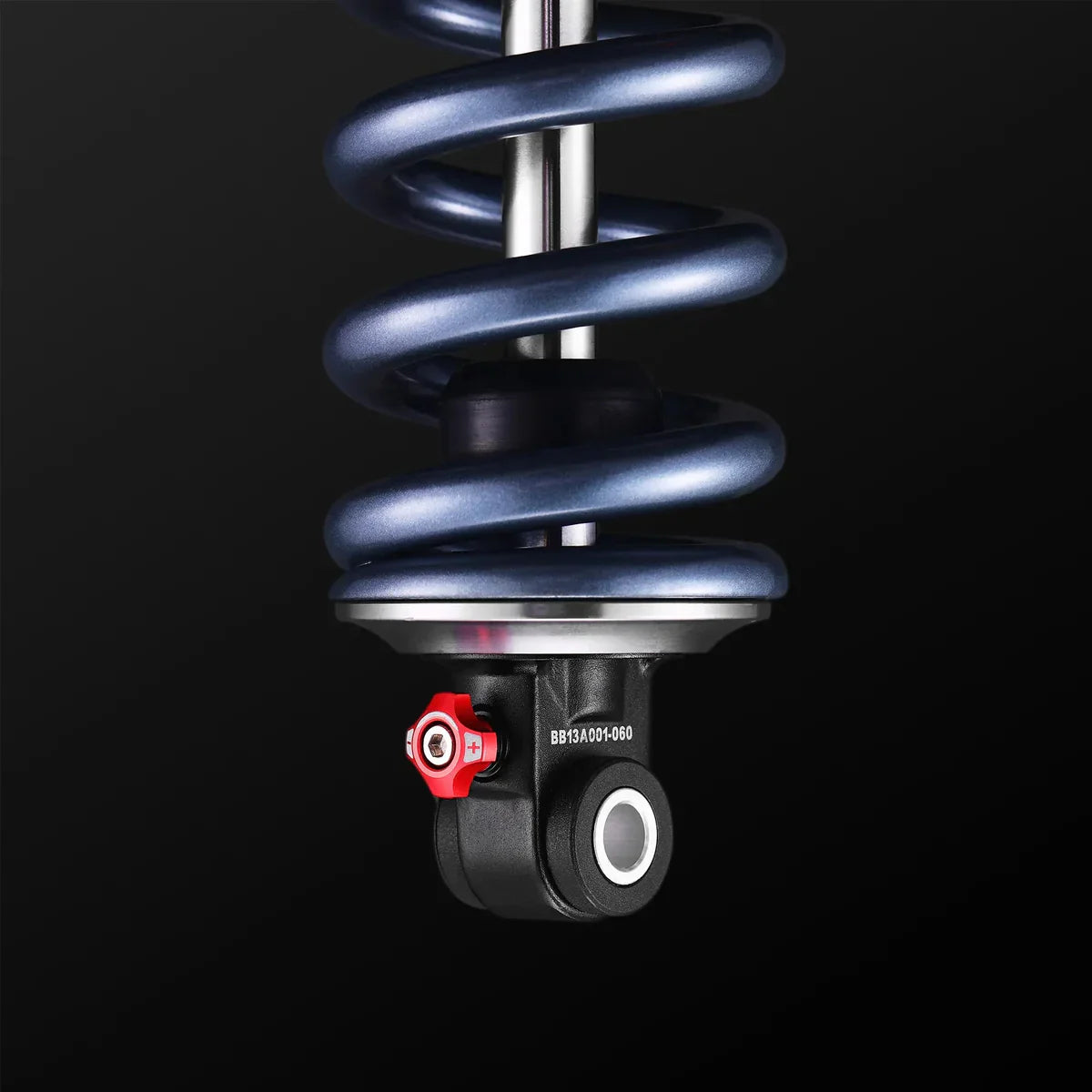

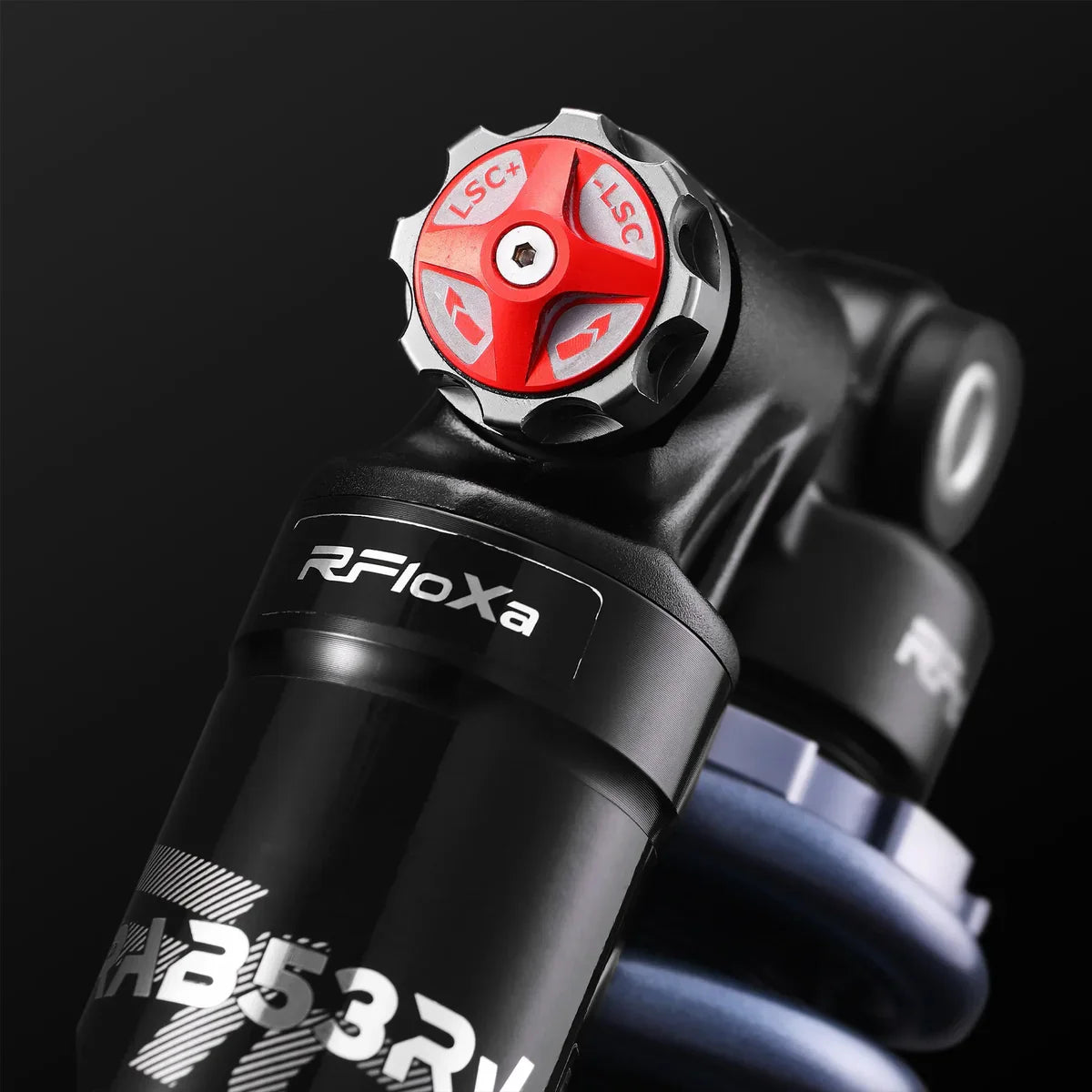

RFloXa RAB53RV Rear Shock

Upgrade your e-bike or off-road ride with the RFloXa RAB53RV Rear Shock, engineered for precision, comfort, and control across diverse terrains. Featuring an external nitrogen reservoir and advanced oil-gas separation damping, it delivers superior shock absorption while maintaining stability at high speeds and on rough trails.

Features:

• Advanced Shock Absorption: External nitrogen reservoir with oil-gas separation damping reduces impact and enhances comfort

• Precision Adjustments: Multi-stage rebound, high-speed compression (HSC), and low-speed compression (LSC) damping for tailored ride performance

• Durable Construction: AL6061-T6 forged upper mount, AL6061-T6 main tube, 42CRMO main shaft, and 55CRSI spring wire for long-lasting strength

• Enhanced Comfort: Rubber bladder in the air chamber minimizes heat-induced damping fade and provides fine response to small bumps

• Easy Maintenance: One-step lockout adjuster and easy-to-remove spring design for quick servicing

High & Low-Speed Compression Damping Explained:

• Low-Speed Compression (LSC): Controls response to gradual impacts like pedaling or rough surfaces for stable, comfortable rides

• High-Speed Compression (HSC): Manages rapid impacts, drops, and sudden bumps for controlled, safe riding

Recommended Spring Preload: ~10mm (Excessive preload may deform spring)

Fitment:

• Talaria MX3 / MX4 / MX5 / XXX

• Altis Sigma

• E-Ride Pro S / SS 1.0/2.0/3.0 / SR

• SurRon LBX, LBS, L1E

• Segway X-260 / X-160

• Rawrr Mantis

• 79 Bike Falcon M

• Ventus One

• RFN Apollo

• ReRode R1

Specifications:

• External Nitrogen Reservoir

• Multi-stage Rebound, HSC, and LSC Damping

• AL6061-T6 Forged Upper Mount & Aluminum Alloy Main Tube

• 42CRMO Main Shaft, 55CRSI Spring Wire

• C-Ring Retainer Spring Base for Stability

• Rubber Bladder Air Chamber for Small-Bump Absorption

• One-Step Lockout Adjuster

Take your ride to the next level with the RFloXa RAB53RV Rear Shock — precision engineering for ultimate off-road performance and comfort.
