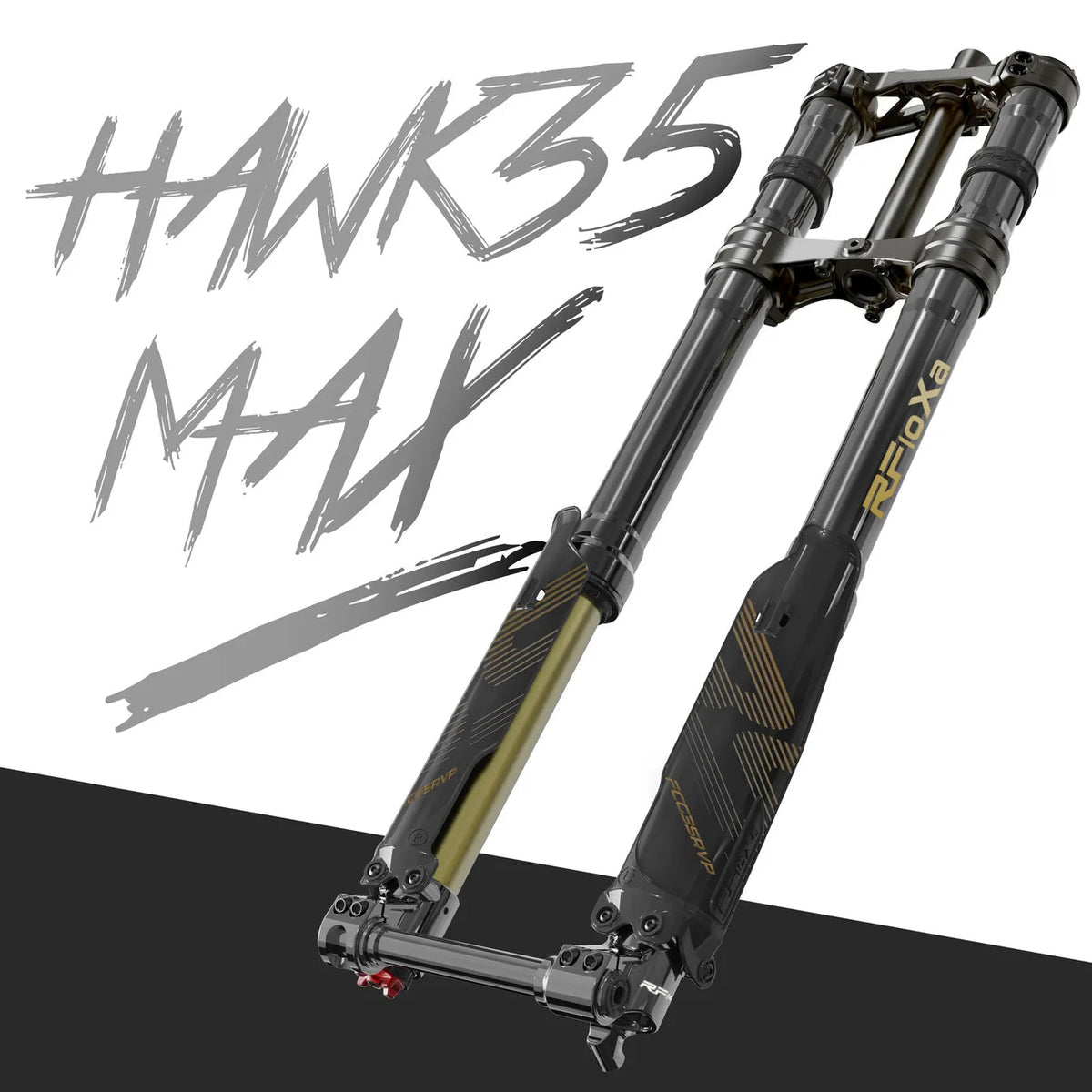

RFloXa Hawk35 MAX

The RFloXa Hawk35 MAX is a high-performance widened front fork system engineered specifically for the E Ride Pro 3.0 / SR platform. Designed for aggressive riding, jumping, and high-speed off-road performance, this fork delivers strength, precision, and advanced tuning capability.

Ready-to-Install Design

• Comes preloaded with bearing kit for direct installation

• No additional parts required for E Ride Pro 3.0 / SR

• If you prefer the fork without the bearing kit pre-pressed, simply leave a note at checkout

Built for seamless installation and perfect platform compatibility.

Tailored Geometry & Fitment

• Designed specifically around E Ride Pro 3.0 / SR geometry

• Standard drop crown color: Black

• Optional crown color available upon request (leave order note at checkout)

Spring Weight Recommendations

203mm Travel (19” / 21” Wheel Compatible)

• 45 lbs Spring – Riders ≤100 kg

• 60 lbs Spring – 100–130 kg (ideal for heavy jumping)

• 45–60 lbs Progressive Spring – 80–130 kg

228mm Travel (19” / 21” Wheel Compatible)

• 45 lbs Spring – Riders ≤100 kg

• 55 lbs Spring – 100–130 kg

Select the correct spring option based on rider weight and riding style for optimal performance.

Performance Suspension System

• Inverted oil-spring damping system

• Multi-stage adjustability for:

  • High-Speed Compression

  • Low-Speed Compression

  • Rebound

  • Spring Preload

Fine-tune the fork to match terrain, rider weight, and riding intensity for maximum control and comfort.

Built for Durability

• AL6061-T6 forged aluminum bottom brackets

• AL7075-T6 aluminum fork tubes

• 55CRSI spring wire for strength and fatigue resistance

• CNC precision machined triple clamp

Engineered for long-term durability in demanding off-road conditions.

Technical Specifications

• Center Distance: 750–800mm

• Main Piston Travel: 203–228mm

• Tube Diameter: Ø37mm

• Caliper Mount Spacing: 99.5mm

• Disc Brake Size: Ø220mm (Upgradeable)

• Damping System: Inverted Oil-Spring

• Adjustments: High-Speed Compression, Low-Speed Compression, Rebound, Spring Preload

• Triple Clamp: CNC Precision Machined

Fitment

• E Ride Pro 3.0

• E Ride Pro SR

The RFloXa Hawk35 MAX is built for riders who demand widened stability, advanced adjustability, and true high-performance front-end control.
