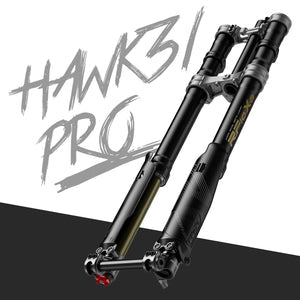

RFloXa Hawk31 Pro

The RFloXa Hawk31 PRO is a high-performance front fork engineered for downhill and aggressive off-road E-Moto riding. Designed for precision control, durability, and full adjustability, the Hawk31 PRO delivers smooth damping performance and confident front-end stability.

If you require a custom length beyond the standard travel range, customization is available upon request.

High-Performance Design

• 203–228mm adjustable travel

• 37mm stanchions for rigidity and steering precision

• 74mm caliper mount spacing

• Compatible with 203mm disc brakes (upgrade options available)

• Designed for electric dirt bikes and downhill platforms

Built to handle aggressive terrain, jumps, and high-speed riding.

Advanced Suspension Technology

• Inverted oil-spring damping system

• Asymmetrical left/right fork leg architecture

• Independent internal structure

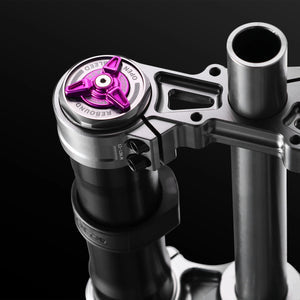

• Multi-stage adjustments for:

  • High-Speed Compression

  • Low-Speed Compression

  • Rebound

  • Spring Preload

Fine-tune performance to match rider weight, terrain type, and riding style.

Robust Construction

• AL6061-T6 forged aluminum bottom brackets

• AL7075-T6 aluminum fork tubes

• 55CRSI spring wire for durability under stress

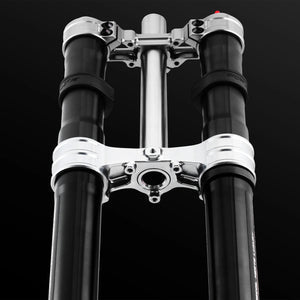

• CNC precision machined triple clamp

Engineered for long-term strength and performance in demanding off-road conditions.

Enhanced Bottom-Out Support

Features a unique oil-pressure bottom-out system that increases end-stroke support, improving stability during hard landings and aggressive impacts.

Reliable Damping Performance

• Dual compression valve plates for stable damping control

• High-quality, low-friction, low-freezing-point suspension oil

• Consistent performance in both hot and cold environments

Specifications

• Center Distance: 750–800mm

• Main Piston Travel: 203–228mm

• Tube Diameter: Ø37mm

• Caliper Mount Spacing: 74mm

• Disc Brake Size: Ø203mm (Upgradeable)

• Damping System: Inverted Oil-Spring

• Adjustments: High-Speed Compression, Low-Speed Compression, Rebound, Spring Preload

• Material: AL6061-T6 / AL7075-T6 Aluminum

• Spring Wire: 55CRSI

• Triple Clamp: CNC Precision Machined

Fitment

Compatible with:

• Talaria MX3 / MX4 / XXX

• SurRon LBX / LBS / L1E

• Segway X-260 / X-160

• E-Ride Pro S / SS 1.0 / 2.0

• Rawrr Mantis

• 79 Bike Falcon M

• Ventus One

• RFN Apollo

• Rerode R1

The RFloXa Hawk31 PRO delivers race-ready control, strong chassis support, and advanced tuning capability for riders who demand performance without compromise.
