RFloXa Hawk31 MAX (Gold)

The RFloXa Hawk31 MAX (Titanium Gold) is a widened, high-performance front suspension system engineered for maximum stability, precision control, and aggressive E-Moto riding. Designed for downhill and off-road use, this fork delivers advanced damping technology and race-ready durability.

Fitment Note:
The widened MAX triple clamp kit is designed based on factory specifications for Talaria Sting MX3/MX4, Sur-Ron Light Bee, and E-Ride Pro models. Non-standard or modified front wheel hubs may not provide perfect fitment.

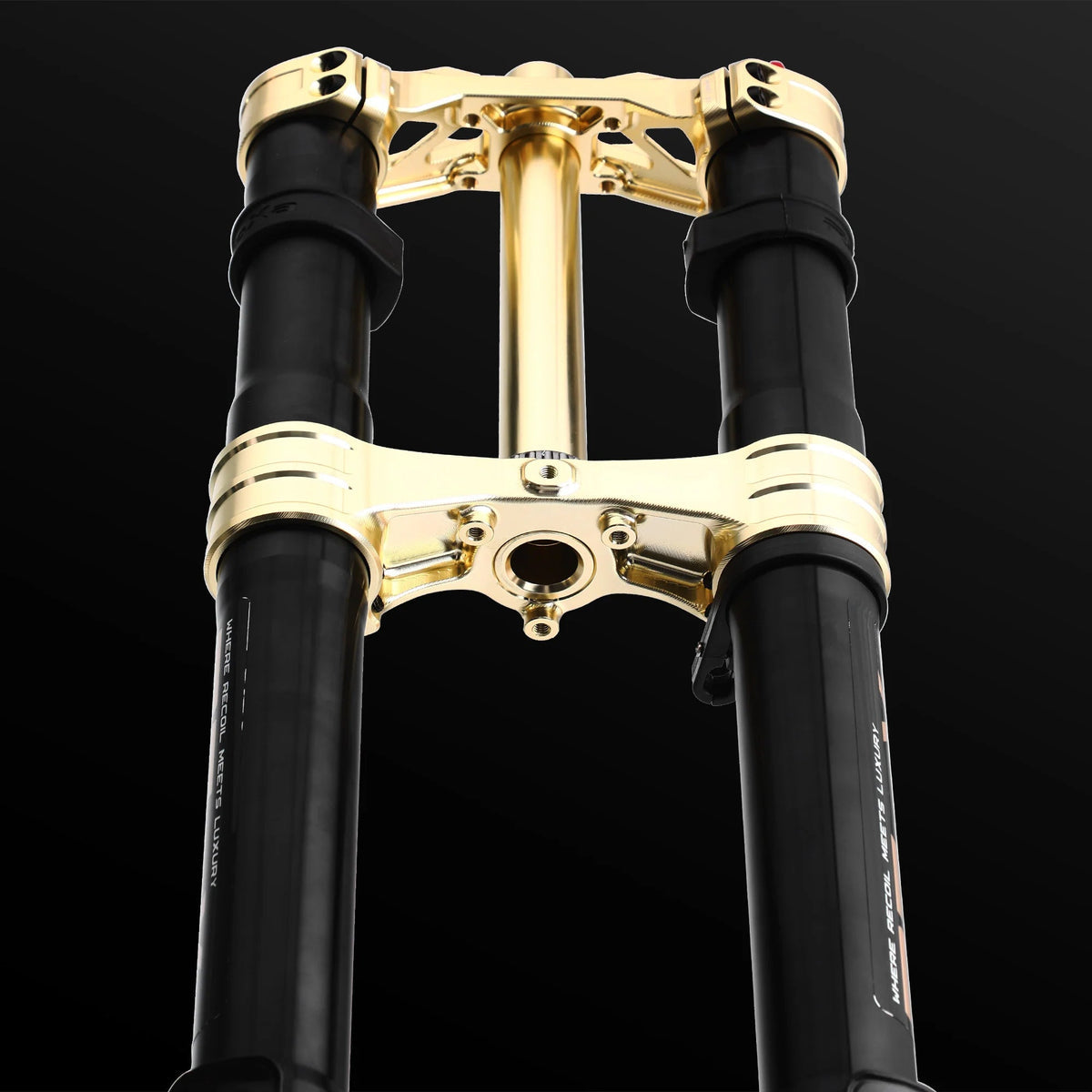

MAX Widened Stability Kit

The MAX widened version includes:

• Upper triple clamp

• Lower triple clamp

• Steering stem

• Raised flange

• Widened front axle kit

• Mounting hardware

CNC precision machined for strength and exact fitment. Available in five color options, including Titanium Gold, with matching clamp and stem finish for a seamless factory look.

High-Performance Fork Design

• 203–228mm adjustable travel

• 37mm stanchions for improved rigidity

• 74mm caliper mount spacing

• Compatible with 203mm disc brakes (220mm upgrade supported)

• Designed for electric dirt bikes and downhill bikes

Built for aggressive riding, heavy braking, and technical terrain.

Advanced Suspension Technology

• Inverted oil-spring damping system

• Asymmetrical left/right fork leg architecture

• Independent internal structure

• Multi-stage adjustments for:

  • High-Speed Compression

  • Low-Speed Compression

  • Rebound

  • Spring Preload

Allows precise tuning for rider weight, terrain, and riding style.

Robust Construction

• AL6061-T6 forged aluminum bottom brackets

• AL7075-T6 aluminum fork tubes

• 55CRSI spring wire for high stress durability

• CNC-machined MAX triple clamp system

Engineered to handle demanding riding conditions without flex or premature wear.

Enhanced Bottom-Out Support

Features a unique oil-pressure bottom-out system that provides strong end-stroke support, increasing stability and reducing harsh impact on hard landings.

Reliable Damping Performance

• Dual compression valve plates for stable damping

• High-quality, low-friction suspension oil

• Low freezing-point formula for consistent performance in extreme conditions

Fitment

Compatible with:

• Talaria MX3 / MX4 / XXX

• SurRon LBX / LBS / L1E

• Segway X-260 / X-160

• E-Ride Pro S / SS 1.0 / 2.0

• Rawrr Mantis

• 79 Bike Falcon M

• Ventus One

• RFN Apollo

• Rerode R1

Specifications

• Center Distance: 750–800mm

• Main Piston Travel: 203–228mm

• Tube Diameter: Ø37mm

• Caliper Mount Spacing: 74mm

• Disc Brake Size: Ø203mm (Upgradeable)

• Damping System: Inverted Oil-Spring

• Adjustments: High-Speed Compression, Low-Speed Compression, Rebound, Spring Preload

• Material: AL6061-T6 / AL7075-T6 Aluminum

• Spring Wire: 55CRSI

• Triple Clamp: CNC Precision Machined

The RFloXa Hawk31 MAX is built for riders who want maximum front-end stability, wider stance confidence, and fully tunable suspension performance.
