MOXIN Auto Wheelie Controller

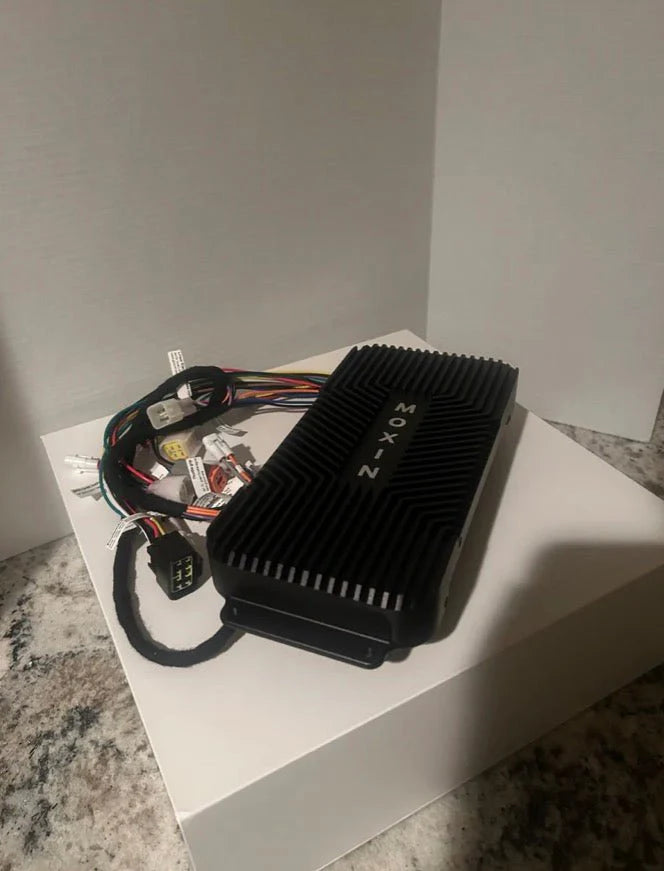

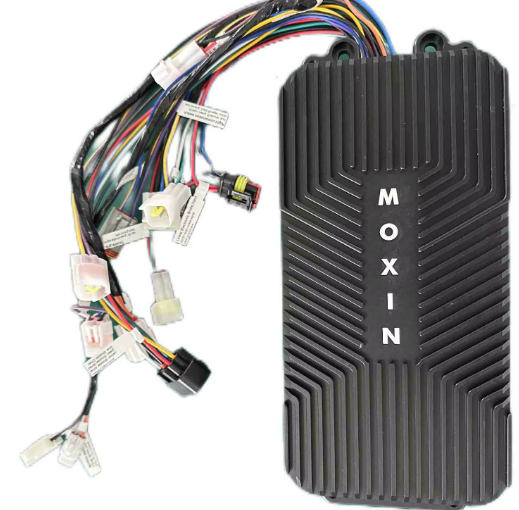

Upgrade your electric bike with the Moxin 60 kW Wheelie-Assist Controller, a full plug-and-play system designed for top performance and ease of installation. Compatible with Sur-Ron Light Bee, Sur-Ron Ultra Bee, Talaria MX4/MX5, Talaria X3, 79 Bike, Falcon, and E-RidePro SS.

Features & Package Contents:

• Moxin Controller with wheelie-assist
• LCD display options: 3″, 5″, or 7″ + mounting bracket
• Left/right combination switch
• Installation tool kit
• Regen (linear electronic brake)
• Encoder-to-Hall adapter harness
• OTA (over-the-air) update module

Compatibility & Installation:

• Full plug-and-play for Sur-Ron Light Bee (custom mounts and loom adapters in development; fabrication possible if desired)
• Compatible with 6-pin Hall motors and 7- or 8-pin encoder motors including:

• Stock Light Bee (Hall/SPM)
• Stock Ultra Bee (Encoder/IPM)
• Stock Sting 8.0 (KO Encoder)
• Stock E-Ride (Encoder)
• QS165 / QS138 (Encoder)
• EBMX XLB-60 / XUB-80 (Hall)
• SOTION LTXS (Encoder)
• Recommended motor upgrade: 20–30 kW for optimal performance
• Not compatible with TORP TM40 Pro without connector modification

Technical Specifications:

• Rated voltage: 48 V–80 V
• Peak phase current: 1,100 A
• Peak power (10 s): 61.6 kW (80 V × 770 A)
• Max speed: 1-pair: 200,000 RPM | 4-pair: 50,000 RPM | 16-pair: 12,500 RPM
• Continuous bus current: 500 A
• Control response: 1,000 Hz (1 ms)
• Waterproof: IP68 (10 m)
• Dimensions: 194 × 98 × 58 mm | Weight: 1.7 kg
• Short-circuit current: ±1,500 A (response time 5 μs)

This kit combines advanced performance, full integration, and future-proof upgrades for high-powered e-bikes.
