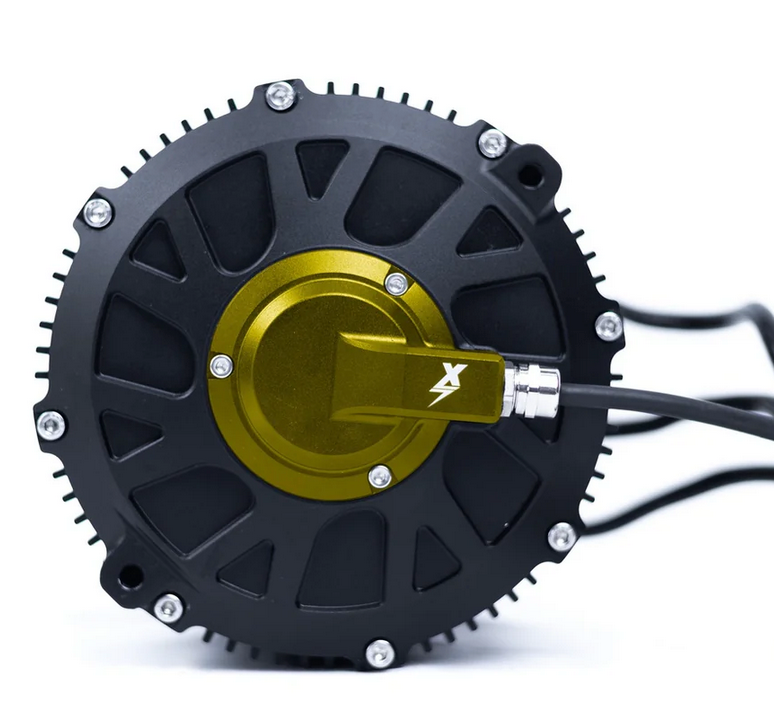

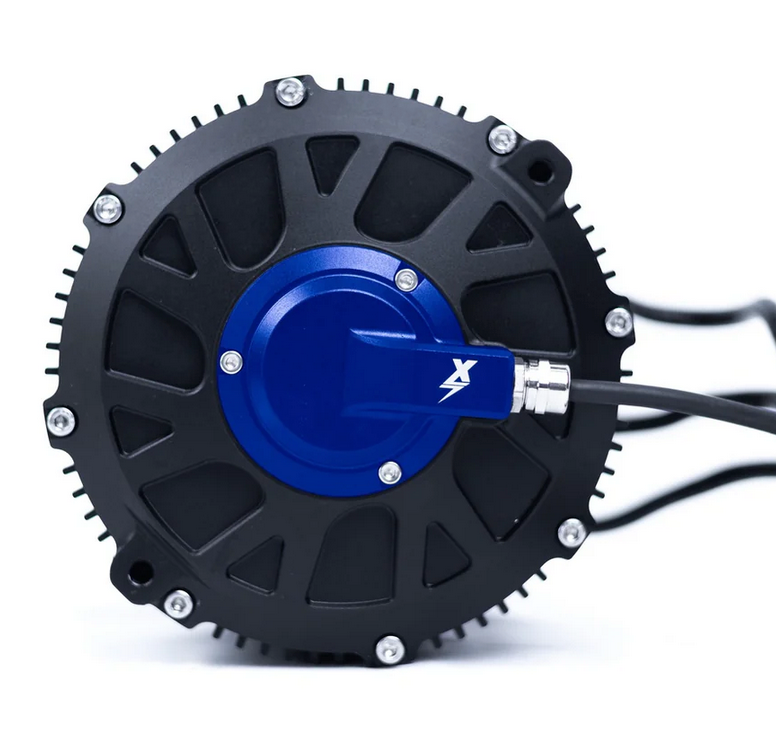

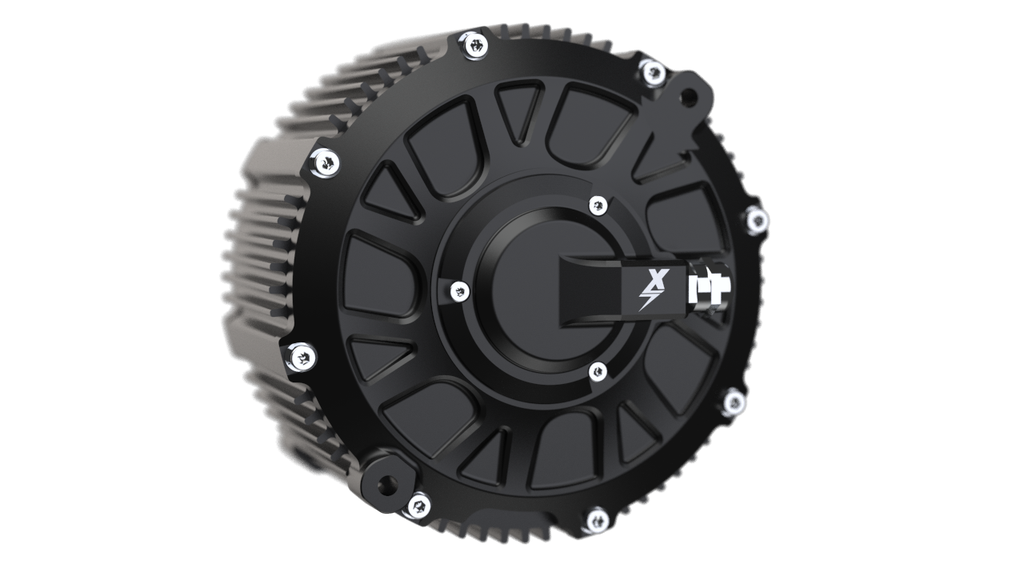

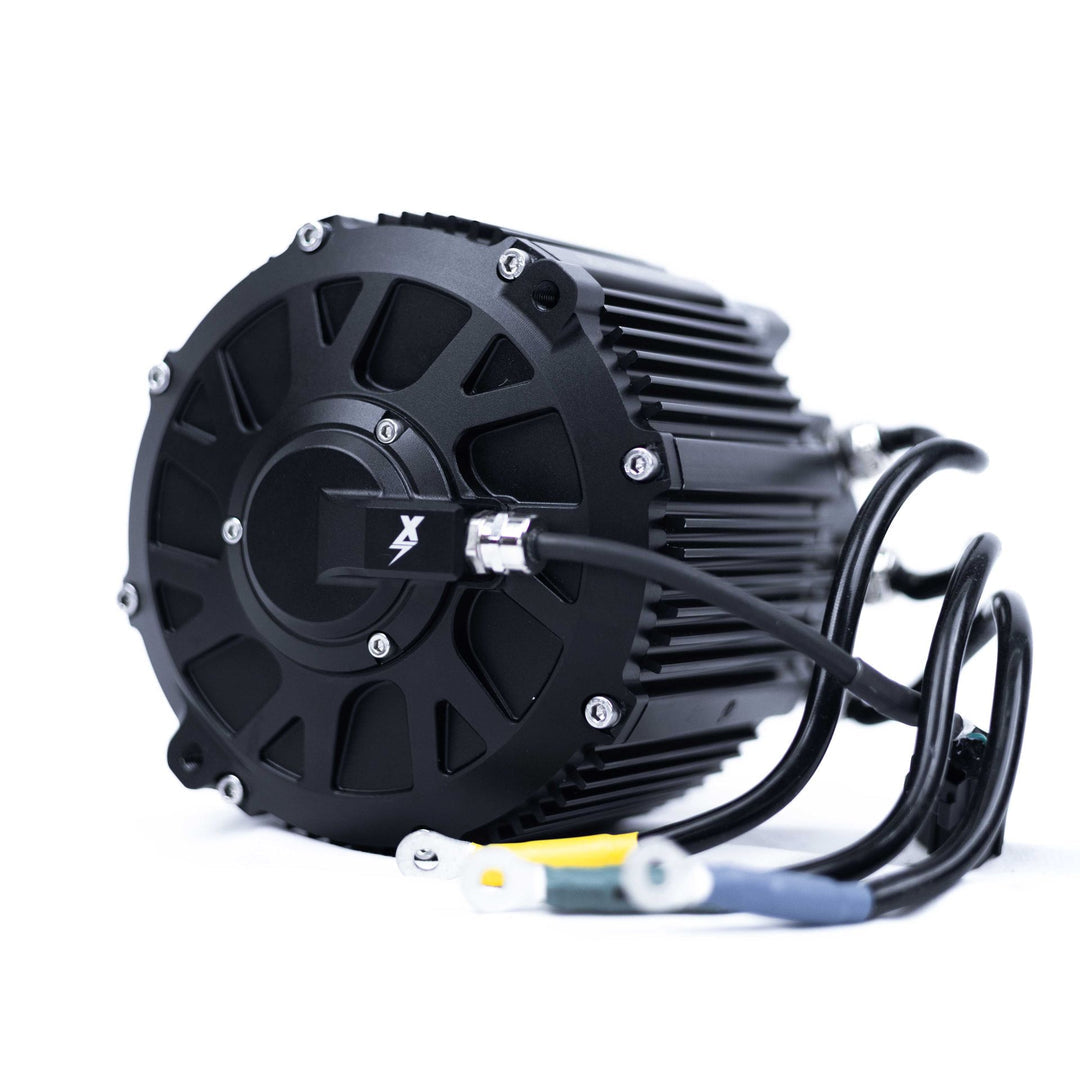

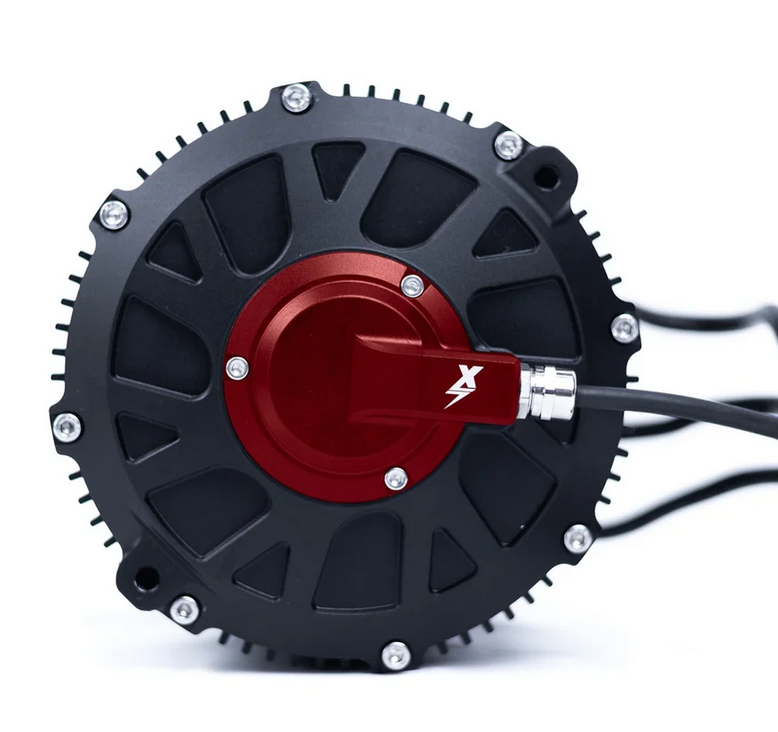

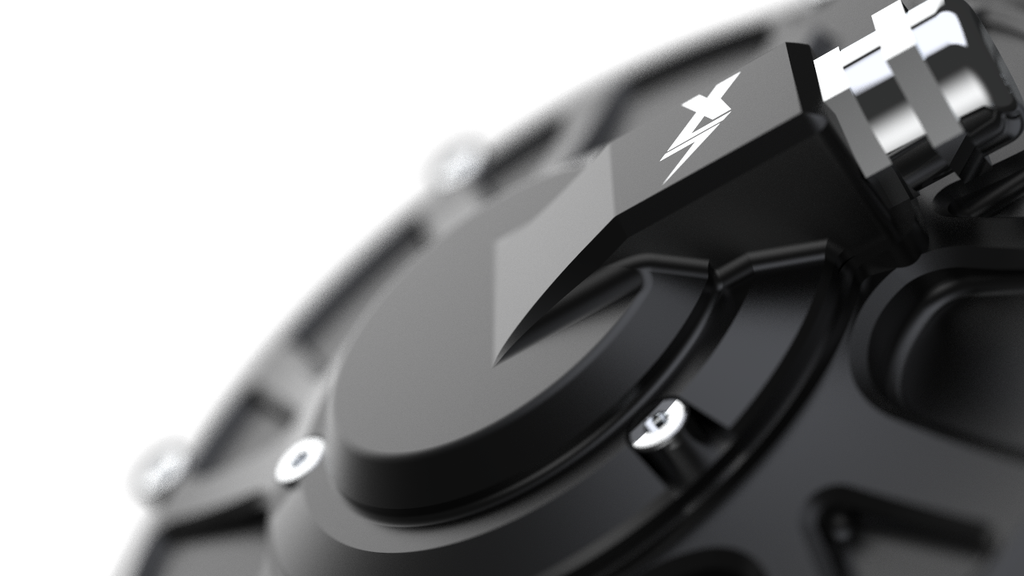

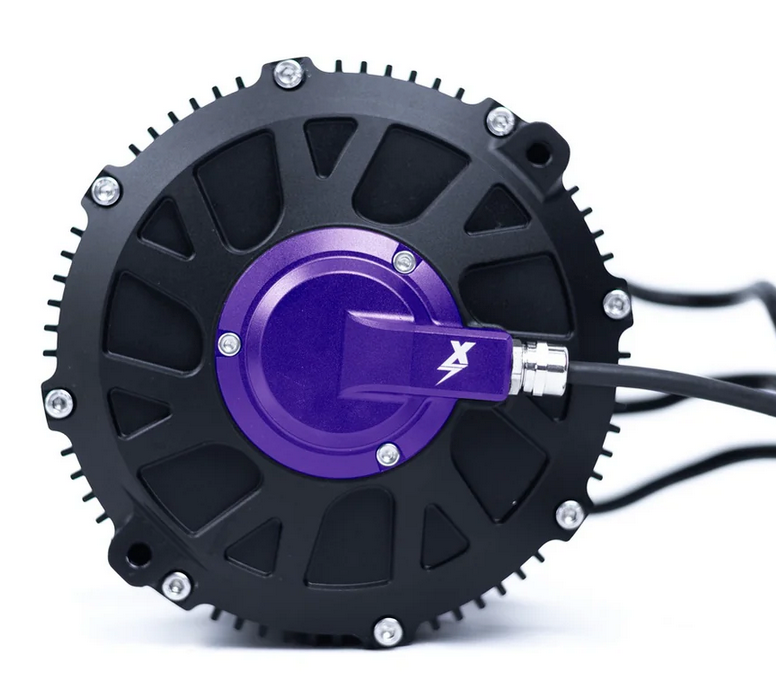

EBMX XLB-60 RACE Motor Kit

Push your off-road performance to the limit with the EBMX XLB-60 RACE Motor. Designed to outperform other motors in its class, this high-speed, high-torque powerhouse keeps cool under race conditions so you can focus on riding—not worrying about overheating. Built for tracks, trails, and extreme off-road adventures, the XLB-60 RACE delivers unmatched precision, control, and raw power.

Key Features:

• High Performance: Rated 35 kW, designed to handle 180°C windings with U42H magnets

• Custom IPM Rotor: 1 mm rotor air gap revving to 13,000 RPM for maximum efficiency

• Encoder-Based Motor Control: Smooth, predictable power delivery with superior low-end torque compared to hall sensor designs

• Tuned for EBMX X-9000 Controller: Works seamlessly with X-9000 controllers; may work with other controllers with custom tuning

• Included Accessories: Custom EBMX bash plate included with motor

Recommended Gearing:

• Off-Road (18"): 58T–64T (75 MPH top speed with 64T / 72 V)

• Off-Road (16"): 54T–58T

• Off-Road (17"): 56T–60T

Recommended X-9000 Settings (400 A BMS 20S/22S):

• 1000 Phase / 30 kW

• 900 Phase / 25 kW

• 800 Phase / 20 kW

• Field Weakening Adjustment: 0% for extended range (up to 65 MPH on 72 V with 64T sprocket)

Real-World Testing (May Vary):

• 85 kg Rider, 20S 72 V Race Battery: Peak Power 32–34 kW

• 85 kg Rider, 22S 81 V Race Battery: Peak Power 36–38 kW

Safety & Usage Notes:

• Off-Road Use Only: Not intended for public roads

• Experienced Riders Only: Extreme speed and power require skilled handling

• Upgrade Safety Gear: Ensure brakes and safety equipment can handle increased performance

• Ride Responsibly: Always be aware of surroundings and adhere to local laws

• Keep Away From Children: Motors are not toys

Experience extreme speed, smooth torque delivery, and reliable control with the EBMX XLB-60 RACE Motor—engineered for serious off-road riders who demand the best.
