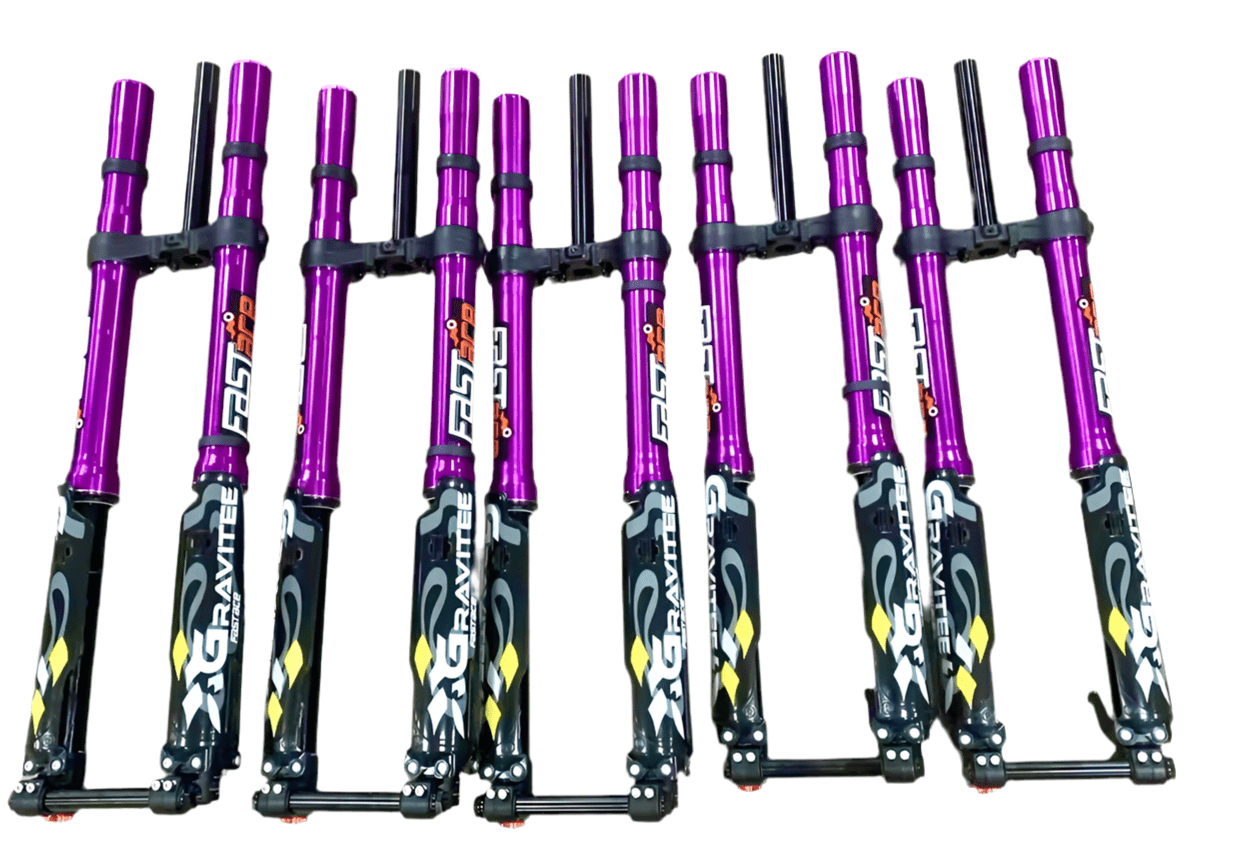

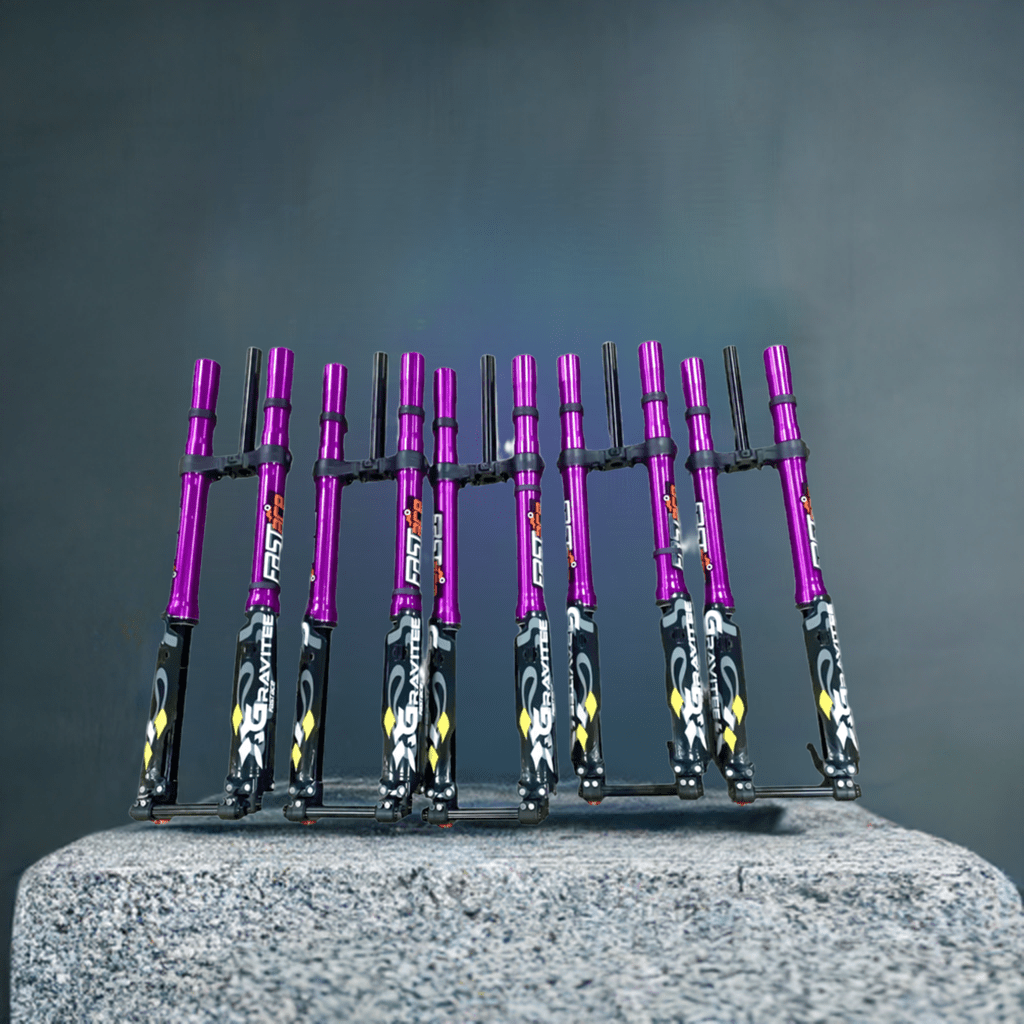

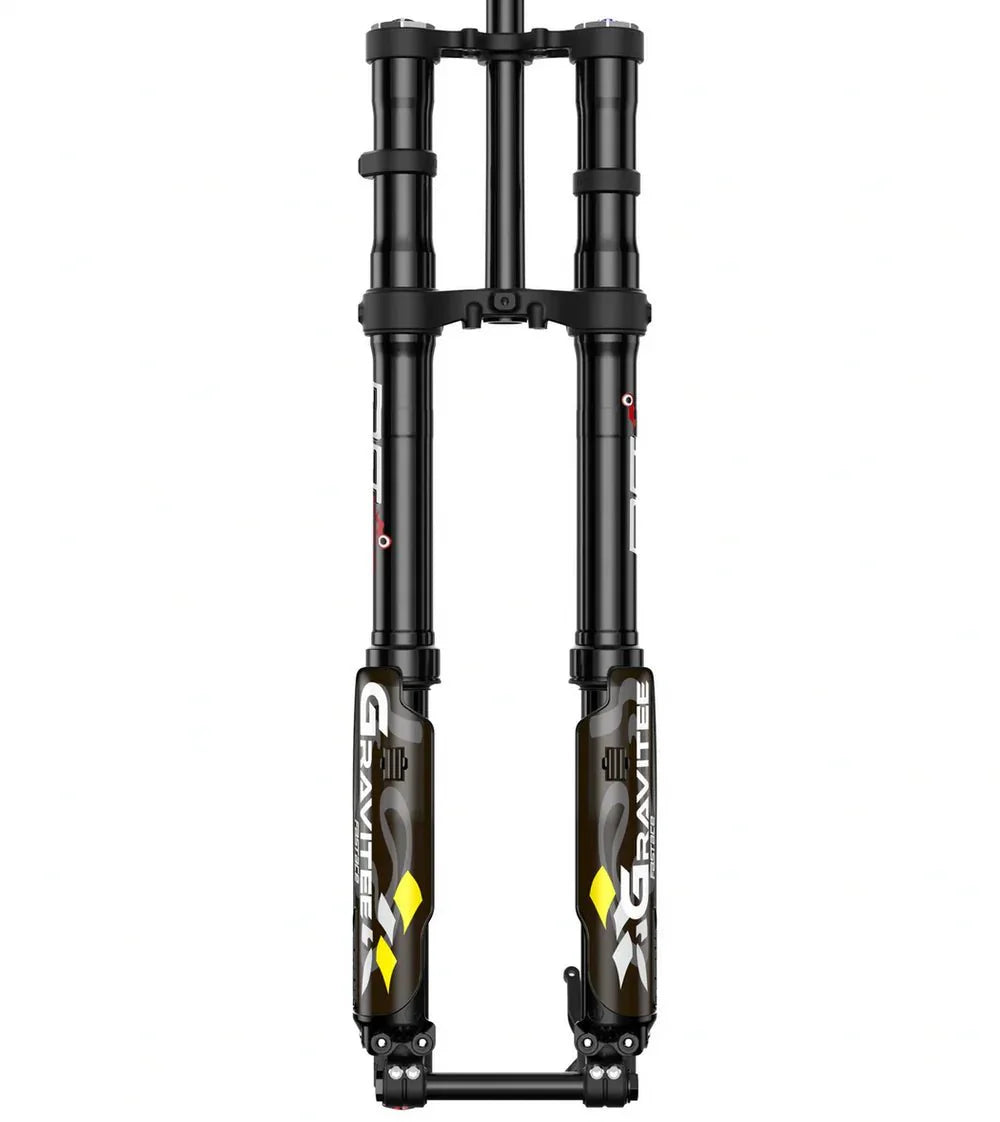

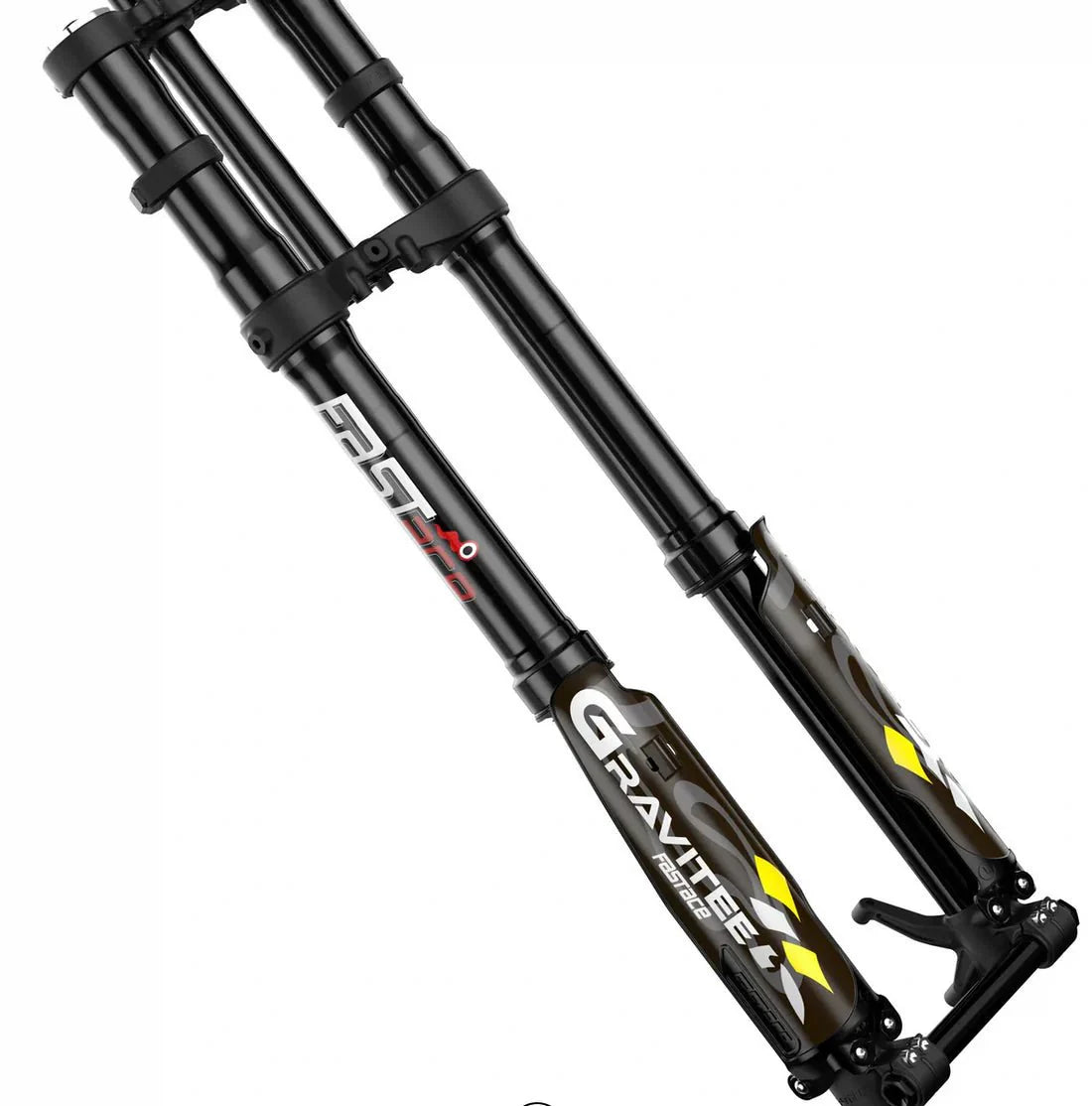

FastAce AHX12RV Gravitee Fork – E-Moto & Multi-Bike Compatible

Experience superior handling and adjustability with the FastAce AHX12RV Gravitee Forks — 60 lb coil spring forks designed for light e-motos like the SurRon LBX, Talaria MX3 / MX4 / XXX, E Ride Pro SS 2.0, and similar bikes. Known as the “Gravitee Fork,” these beefy, high-performance forks deliver smooth, precise damping with race-ready adjustability. Ships same day from Chicago.

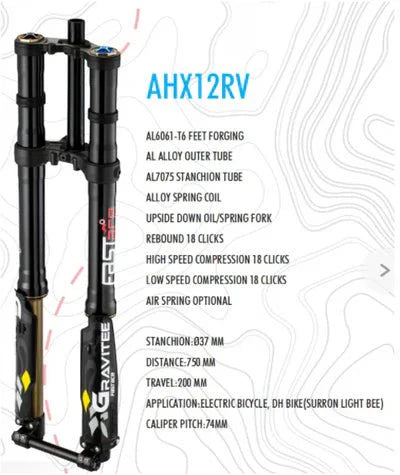

Specifications:

• Leg Material: 2000 Series Aluminum

• Leg Diameter: 37 mm

• Axle: 20×10 M14×P1.5×170 L

• Steerer: 1-1/8" Straight

• Spring Type: Coil spring

• Adjustments: Rebound, High-Speed Compression (HS), Low-Speed Compression (LS)

  • 18 clicks HS compression

  • 18 clicks LS compression

  • 18 clicks rebound damping

• Crown: Forged

• Brake Post Mount: 203 mm (compatible with up to 223 mm rotors)

• Max Tire Width: 67 mm

• Ride Height: 22.9 in

• Travel: 200 mm

Weight Scale & Rider Recommendations:

• 38–60 lb progressive spring: suitable for 150–225 lb riders (optimal 176–265 lb)

• 60 lb spring: suitable for 190–225 lb riders (optimal 220–265 lb)

Compatible Bikes:

• Talaria MX3 / MX4 / XXX

• SurRon LBX / LBS / L1E

• Segway X-260 / X-160

• E Ride Pro S / SS 1.0 / 2.0

• Rawrr Mantis (requires new upper tapered bearing, sold separately)

• 79 Bike Falcon M

• Ventus One

• RFN Apollo

• ReRode R1

The FastAce AHX12RV Gravitee Fork combines high-strength construction, precise damping, and full adjustability to give riders maximum performance, control, and confidence on any trail or track.
